Pictures Nikon D70

January 22, 2004 | Comments (0)

Found some pictures of the new Nikon D70. The pictures seem to come from the official brochure.

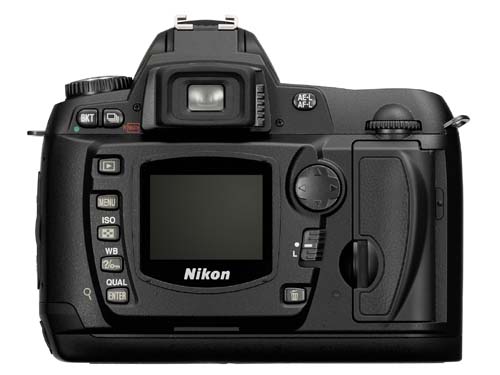

D70 back (21kb)

The display looks rather small 1.8" color LCD (also includes auto rotation of images), viewfinder has diopter adjustment, 95% frame coverage at .75x magnification.

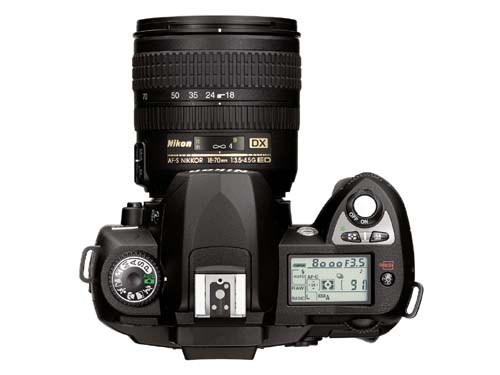

D70-top (21kb)

Top of the camera shows a shutterspeed up to 8000, 2 dials for changing shutter speed, aperture, and functions to change exposure/flash compensation, metering mode. A big dial to select from M, A, S, P modes and 7 preset modes like macro, portrait, landscape, close-up, sports, night portrait, night landscape. Focus assist light is also present. Another interesting thing is the new 18-70 consumer AF-S G DX lens (27-105 on 35mm).

D70 viewfinder information

The view finder shows 5 af sensors flash and exposure compensation. I’m missing metering mode.

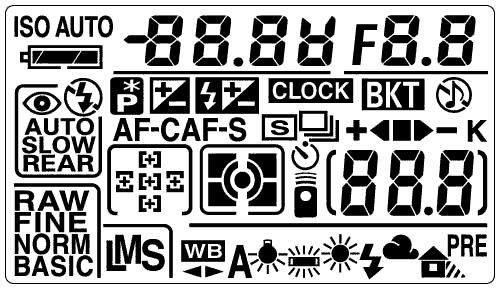

D70 top display

The top display shows shutter speeds aperture, self timer, sound off, flash modes slow, rear, auto and red-eye, current iso setting, bracketing, exposure mode and icons for preset white balance (auto, fluorescent, incandescent, cloudy, flash, shadow). Not sure if it shows white balance also as color temperature. Current AF mode continuous or normal. I do not understand the ‘remote’ trigger icon. It’s probably for firing the camera using a remote trigger device.

Tom Hogan also had his hands on the D70 brochure but Nikon asked to get the information off the site.

If all the specs floating around on the internet are real, then the last D100 is sold now. The camera includes probably anything a D100 has.

Max resolution3008x2000
Min resolution 2240x1448, 1504x1000 2240x1448 Medium, 1504x1000
Pixels6 Mpix (6.1 raw)6 Mpix (6.1 raw)
Sensor size 23.7 x 15.5 mm 23.7 x 15.5 mm
ISO 200-1600 200-1600
AF sensor 5 sensor CAM900 5 sensor CAM900
Min shutter 1/8000 1/4000
Max shutter 30 sec 30 sec + Bulb
Flash modes Front curtain, Rear curtain, Red-Eye, Slow, Red-Eye Slow
Flash sync 1/500 1/180
Exposure compensation 1/2 or 1/3 EV steps -5EV to +5EV in 1/2 or 1/3 EV steps
Metering 3D Matrix metering, Center weighted, Spot 3D Matrix metering, Center weighted, Spot
Continuous mode 3fps 3 fps
Buffer20 frames jpeg 6 frames jpeg
Remote control ML-L3 Infrared Remote control Via Optional vertical grip or software
Battery EN-EL3 lithium ion battery EN-EL3 lithium ion battery
DOF button yes yes

My guess is that the D100 is upgraded soon to a camera based on the F100 body. That upgrades to: PC sync, CAM 1300 AF sensor, 5fps, a magnesium alloy body and metering with AI and AI-S lenses.



will nikon introduce cable shuttr release in their digi-slrs!

Posted by: :) mayur at April 29, 2005 9:00 AM
